🧠 Concept 8: Volumes & Persistent Storage (VERY IMPORTANT 💯)

---

🚀 1. Core Idea (1-line)

👉 Volumes allow data storage for Pods, and Persistent Volumes make that data survive pod restarts

---

🧠 2. Problem (VERY IMPORTANT ⚠️)

Pods are ephemeral:

• Pod dies → data gone ❌

👉 Example:

• Your ML model logs / DB data → lost 😭

---

💡 3. Solution

Two levels:

🔹 1. Volume (temporary)

• Lives with Pod

• Deleted when Pod dies

🔹 2. Persistent Volume (PV)

• Lives beyond Pod

• Data survives restart ✅

---

📦 4. Types Overview

Type	Lifetime	Use case
emptyDir	Pod lifetime	temp storage
hostPath	Node storage	dev/testing
PersistentVolume	Independent	production

---

🔥 5. emptyDir (Basic Volume)

volumes:
- name: temp-storage
  emptyDir: {}

👉 Use case:

• Cache

• Temp files

---

💥 6. Persistent Volume (PV)

👉 Storage resource in cluster

Example:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: my-pv
spec:
  capacity:
storage: 5Gi
  accessModes:
- ReadWriteOnce

---

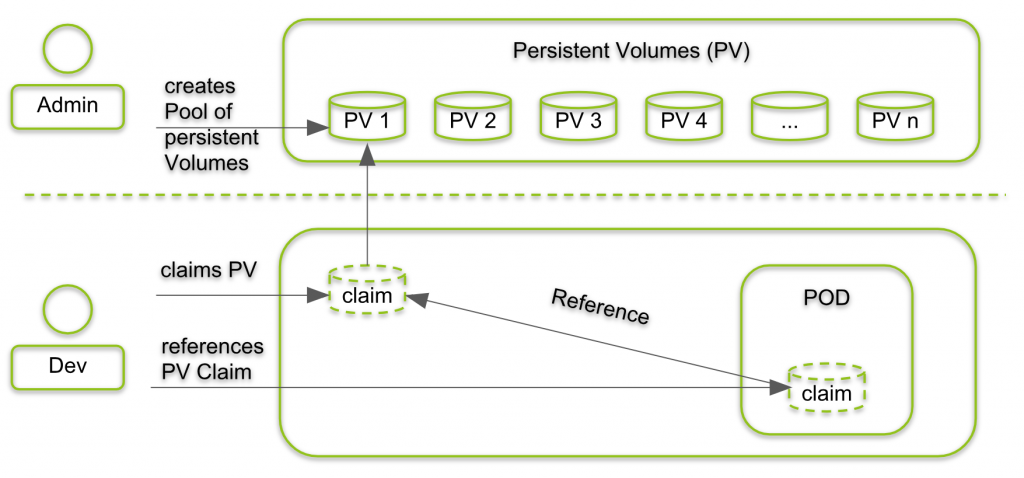

📥 7. Persistent Volume Claim (PVC) (MOST IMPORTANT 🔥)

👉 Pod does NOT directly use PV

Instead:
👉 Pod → PVC → PV

---

PVC Example:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: my-pvc
spec:
  resources:
requests:
  storage: 2Gi
  accessModes:
- ReadWriteOnce

---

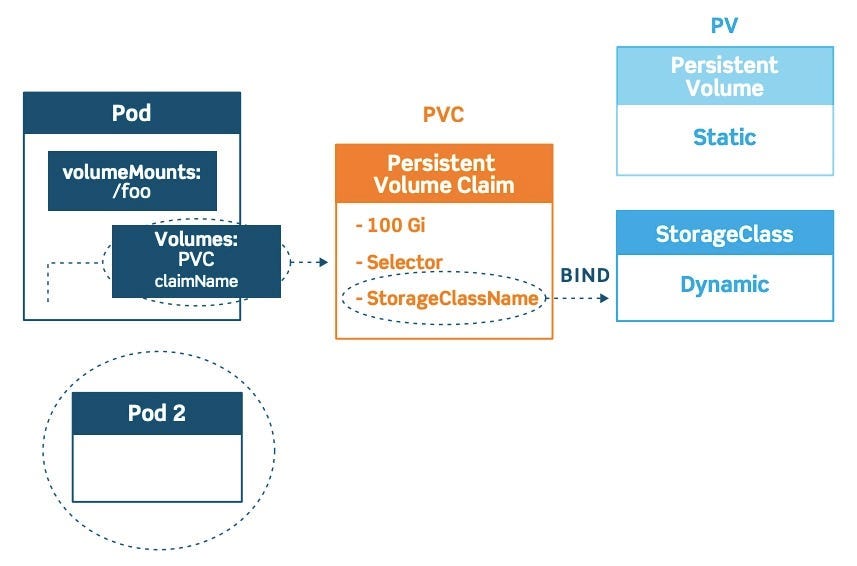

🔗 8. Full Flow (VERY IMPORTANT 🔥)

👉 Flow:

Pod → PVC → PV → Actual Storage (EBS / Disk / NFS)

---

⚙️ 9. Using PVC in Pod

volumes:
- name: data
  persistentVolumeClaim:
claimName: my-pvc

---

🔥 10. Real-world Example (ML / DevOps)

You deploy:

• ML model server

Needs:

• Model files

• Logs

• Cache

👉 Use PVC:

• Data stays even if pod restarts

---

🧠 11. Access Modes (IMPORTANT)

• ReadWriteOnce (RWO) → one node

• ReadOnlyMany (ROX) → multiple read

• ReadWriteMany (RWX) → multiple write

---

⚠️ 12. Common Mistakes

❌ Storing DB data inside container
❌ Using emptyDir for critical data
❌ Not understanding PVC binding

---

💼 13. Interview Answer

👉 “Persistent Volumes provide durable storage in Kubernetes, while Persistent Volume Claims allow pods to request and use that storage independently of the underlying infrastructure.”

---

⚡ 14. CKA Commands

kubectl get pv
kubectl get pvc
kubectl describe pvc <name>

---

🧠 15. Memory Trick

👉 Pod = stateless 🪶
👉 PV = stateful 💾

---

🔥 16. Pro Insight (Real-world)

In cloud:

• AWS → EBS (RWO), EFS (RWX)

• Azure → Managed disks

👉 PVC dynamically provisions storage via StorageClass

---
