🔥 Solid — tu core concepts complete kar chuka hai.
Ab next logical jump hai:
🧠 Concept 17: Cluster Architecture (Control Plane Deep Dive 💯)
🚀 1. Core Idea (1-line)
👉 Kubernetes control plane manages the entire cluster and ensures desired state is maintained

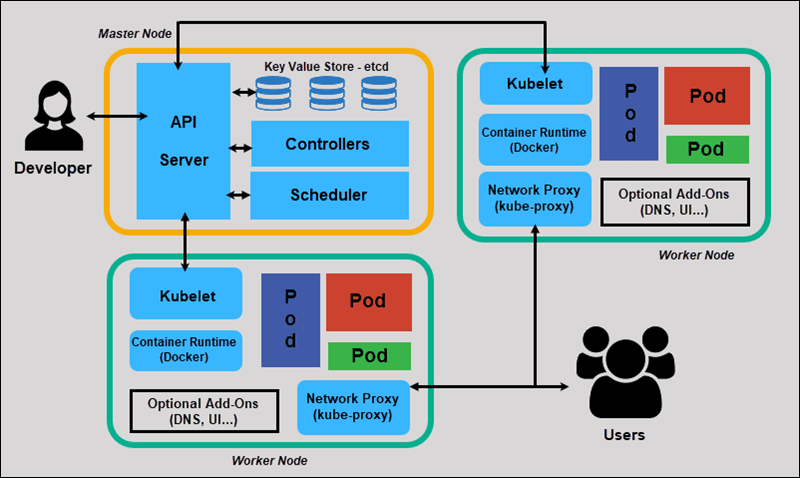

🧠 2. Full Architecture Overview
Cluster =
🧠 Control Plane (Master)
- Decision maker
💪 Worker Nodes
- Run actual workloads
⚙️ 3. Control Plane Components (VERY IMPORTANT 🔥)
🟢 1. kube-apiserver (ENTRY POINT 🚪)
👉 MOST IMPORTANT COMPONENT
-
All communication goes through this
-
CLI (
kubectl) talks to this -
Validates requests
💡 Example:
kubectl get pods👉 Goes to API Server first
🟣 2. etcd (DATABASE 💾)
👉 Stores EVERYTHING
-
Cluster state
-
Configurations
-
Secrets (⚠️ sensitive)
👉 Key-value store
💡 If etcd dies → cluster dies 💀
🔵 3. kube-scheduler (PLACEMENT ENGINE 🧠)
👉 Decides:
- Which pod goes to which node
Based on:
-
Resources
-
Affinity
-
Taints
🟡 4. kube-controller-manager (AUTO HEALER 🔁)
👉 Runs controllers:
-
Node controller
-
ReplicaSet controller
-
Job controller
👉 Ensures:
- Desired state = actual state
💪 4. Worker Node Components
🟢 1. kubelet
👉 Agent on each node
-
Talks to API server
-
Runs pods
-
Ensures containers running
🔵 2. kube-proxy
👉 Handles networking
-
Service routing
-
Load balancing
🐳 3. Container Runtime
👉 Runs containers
Examples:
-
containerd
-
CRI-O
🔗 5. Full Flow (SUPER IMPORTANT 🔥)
kubectl → API Server → etcd
API Server → Scheduler → Node selected
Controller Manager → ensures desired state
kubelet → runs pod on node
kube-proxy → handles traffic💥 6. Real-world Flow Example
You run:
kubectl apply -f deployment.yaml👉 What happens:
-
API server receives request
-
Stores in etcd
-
Scheduler assigns node
-
kubelet creates pod
-
kube-proxy exposes it
⚠️ 7. Common Mistakes
❌ Thinking scheduler runs pods
👉 It only decides placement
❌ Ignoring etcd importance
👉 It’s the backbone
💼 8. Interview Answer
👉 “The Kubernetes control plane consists of components like API server, etcd, scheduler, and controller manager that manage cluster state, while worker nodes run workloads via kubelet, kube-proxy, and container runtime.”
🧠 9. Memory Trick
👉 API Server = gate 🚪
👉 etcd = brain memory 💾
👉 Scheduler = decision 🧠
👉 Controller = correction 🔁
🔥 10. Pro Insight (Real-world)
-
Control plane must be:
-
Highly available
-
Backed up (etcd backups 🔥)
🚀 Next Step
Bol:
👉 “next”
Then we go to:
🔥 Concept 18: Security (RBAC + Service Accounts + Production 🔐 — VERY IMPORTANT)
